9-Valve Manifold Replacement, Wire Tracking & Sprinkler System Revamp in Shelby Township

Real Shelby Township case study

A routine sprinkler start-up uncovered a much larger irrigation problem

This project began as a sprinkler start-up for a homeowner who had recently purchased the Shelby Township property and had never operated the irrigation system. Before investing further in the landscape, the homeowner wanted to know whether the system was functional.

Hunter HydroTech slowly pressurized the irrigation system and tested the stations individually. That initial system check quickly showed that this was not a simple start-up visit.

Initial diagnosis

Four underground leaks were only part of the problem

During the initial zone-by-zone testing, four separate underground zone-line leaks were discovered. Several sprinkler zones also failed to activate correctly from the irrigation controller.

A broken head alone could not explain that combination of failures. The system required both hydraulic and electrical diagnosis: underground piping and fittings had to be evaluated while the control wiring and valve system were traced.

Electrical diagnosis

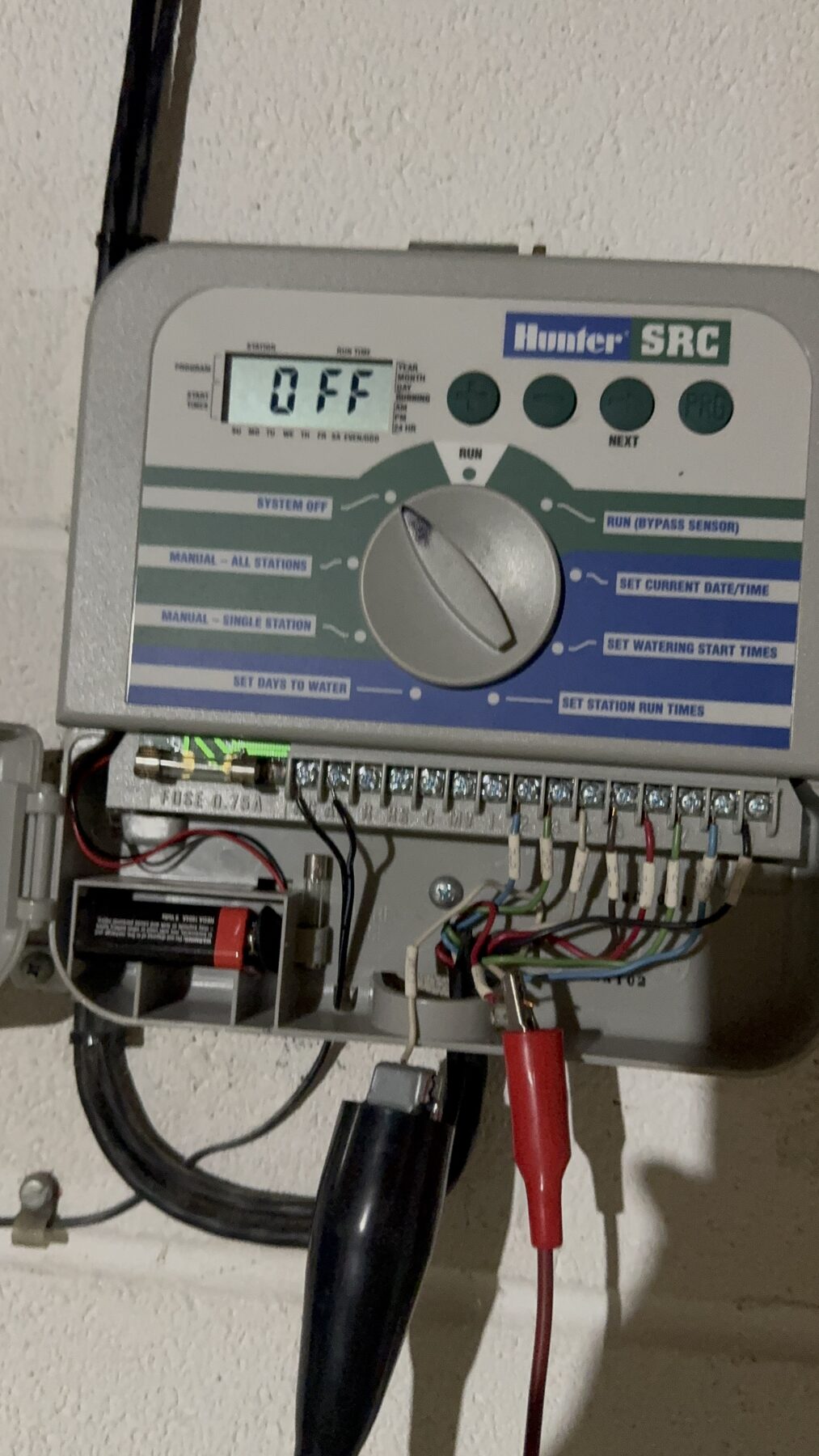

Wire tracking helped identify why multiple zones would not operate correctly

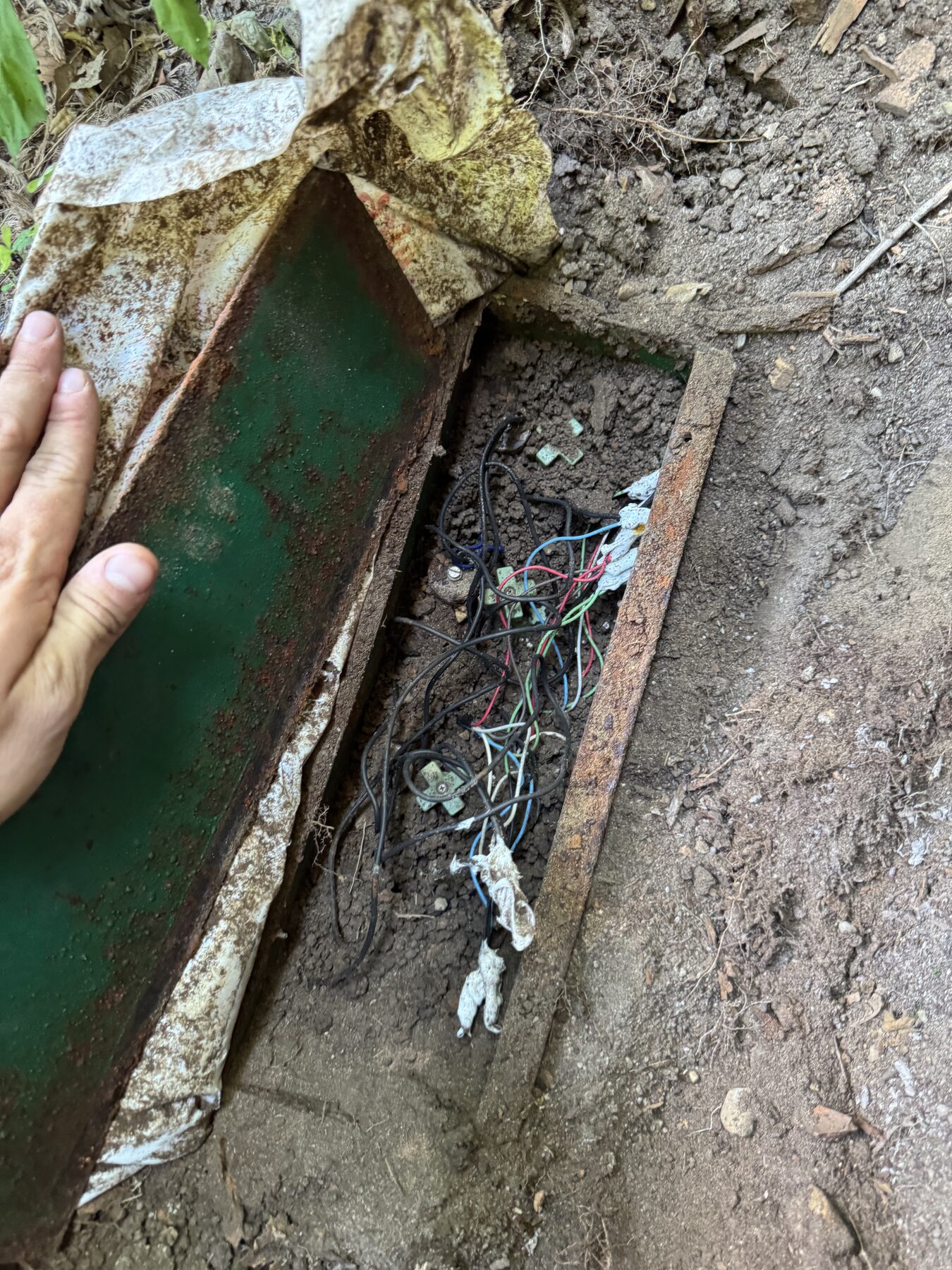

A controller can display a running station even when the low-voltage command never reaches the intended valve. Established systems may contain old splices, cut conductors, abandoned wiring or station assignments that no longer match the original installation.

Wire tracking allowed the electrical side of this Shelby Township system to be separated from the hydraulic failures before the manifold reconstruction was completed.

For similar symptoms, see our Shelby Township valve and manifold repair guide .

Major reconstruction

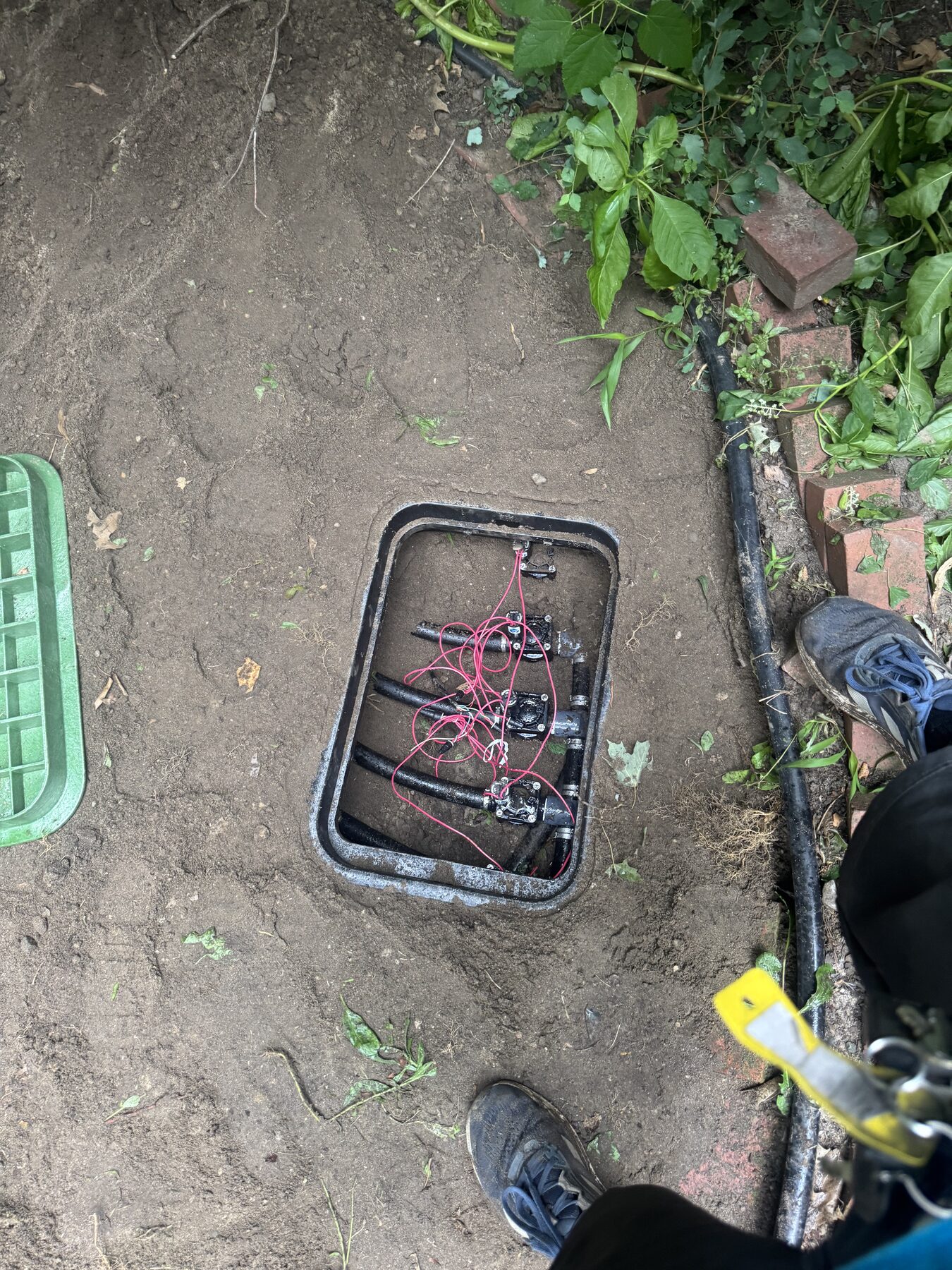

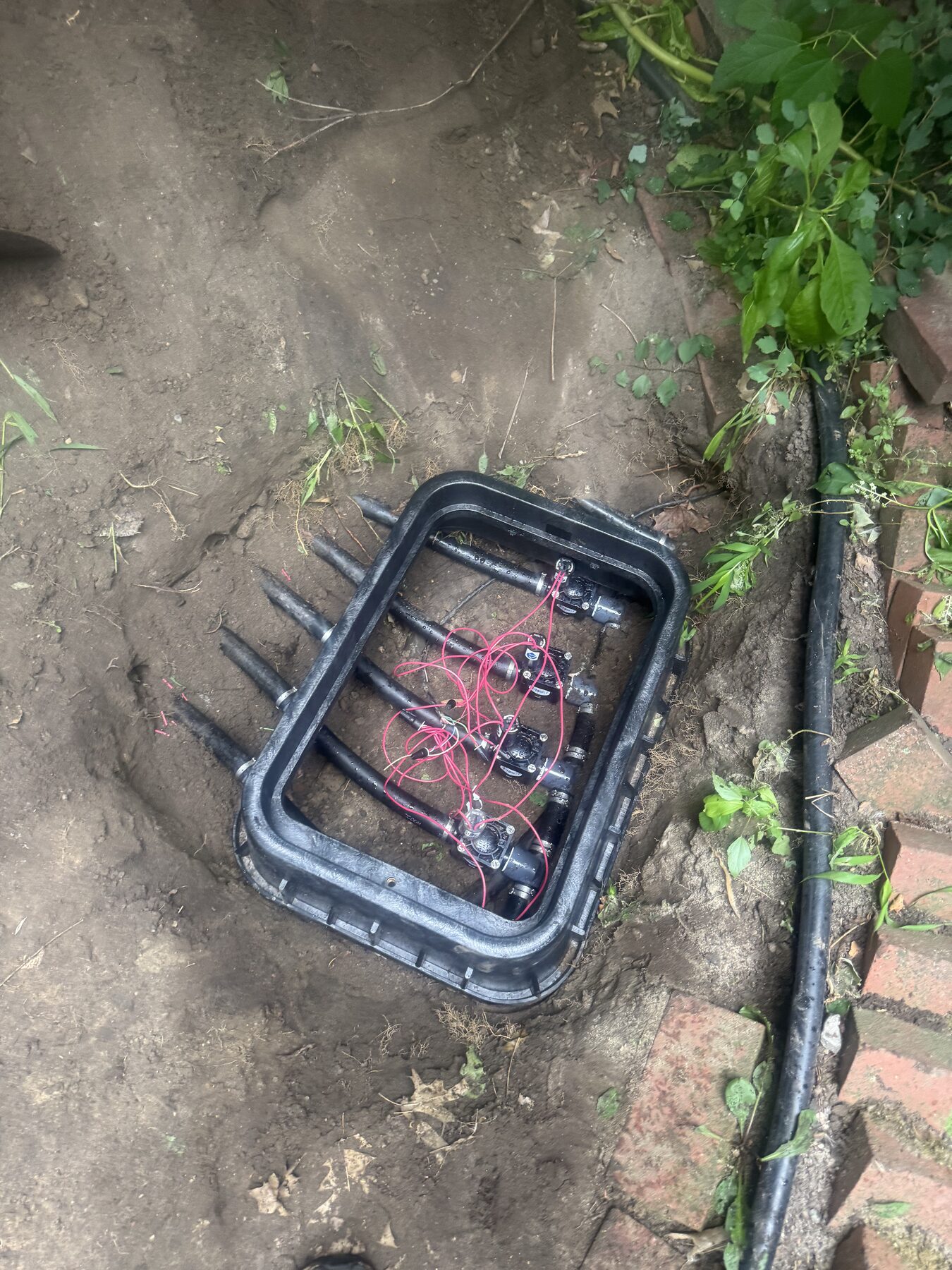

Complete 9-valve manifold replacement

The system ultimately required a complete nine-valve manifold replacement rather than continuing to patch an assembly with multiple problems.

Rebuilding a manifold is not automatically the correct answer for every bad valve. A single healthy valve body with one failed solenoid may only need a targeted repair. On a system where several related components have deteriorated together, a larger rebuild can produce a cleaner and more serviceable result.

Sprinkler coverage

Eleven new sprinkler heads were part of the documented system revamp

The project did not stop at the valve box. The published project record documents eleven new sprinkler heads as part of the larger rebuild.

That matters because restoring electrical control and stopping underground leaks still does not guarantee correct final coverage. The downstream heads have to rise, rotate or spray correctly once the repaired system is operating at normal pressure.

Repair philosophy

Diagnose first, then decide whether the repair should be isolated or systemic

The central lesson from this Shelby Township project is that multiple symptoms can come from multiple failures at the same time. A visible broken sprinkler head did not explain the four buried leaks. The underground leaks did not explain every dead station. Electrical testing and valve work were both required.

That system-level approach is what separates a true sprinkler repair diagnosis from parts swapping.

Real job photos

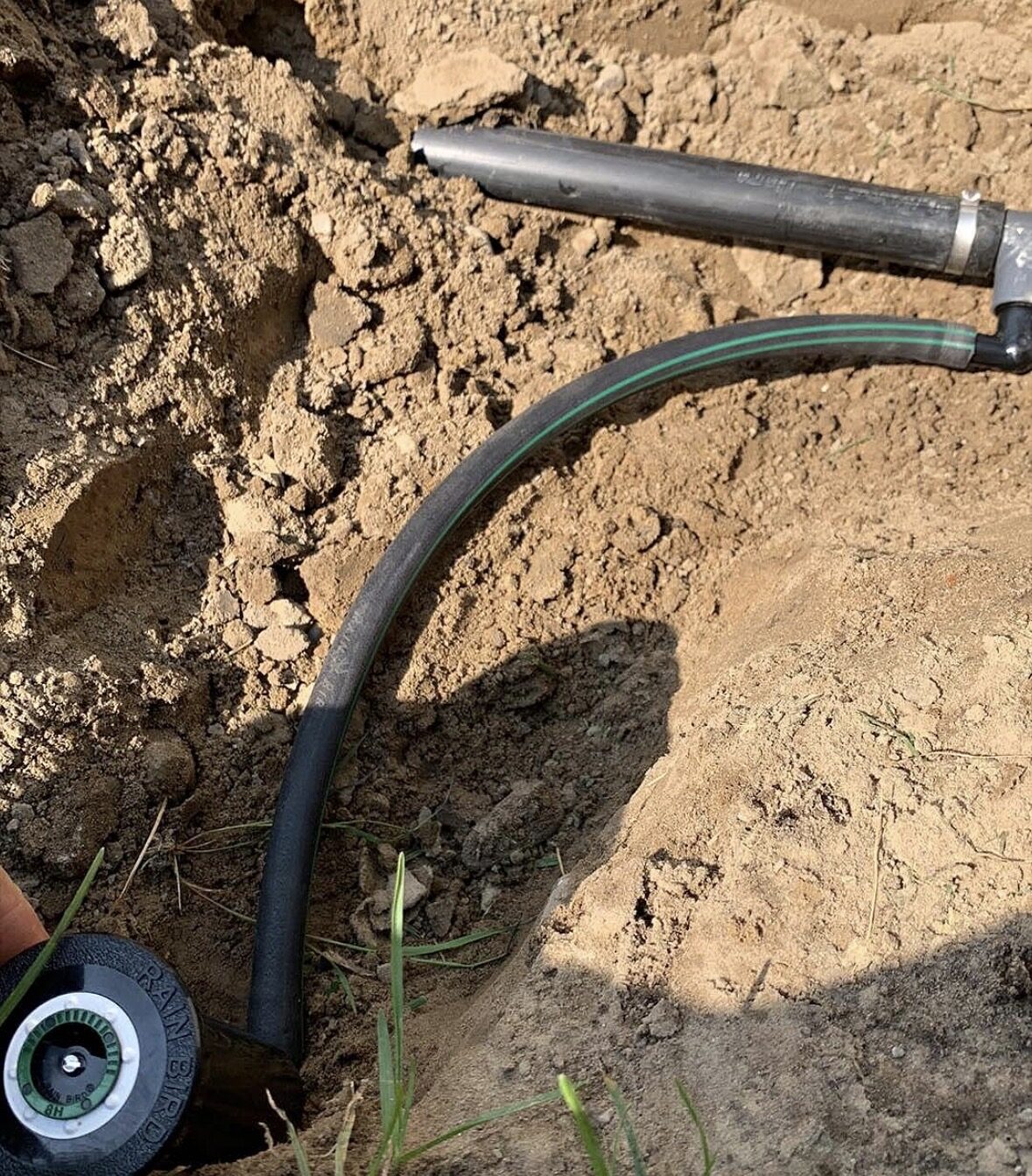

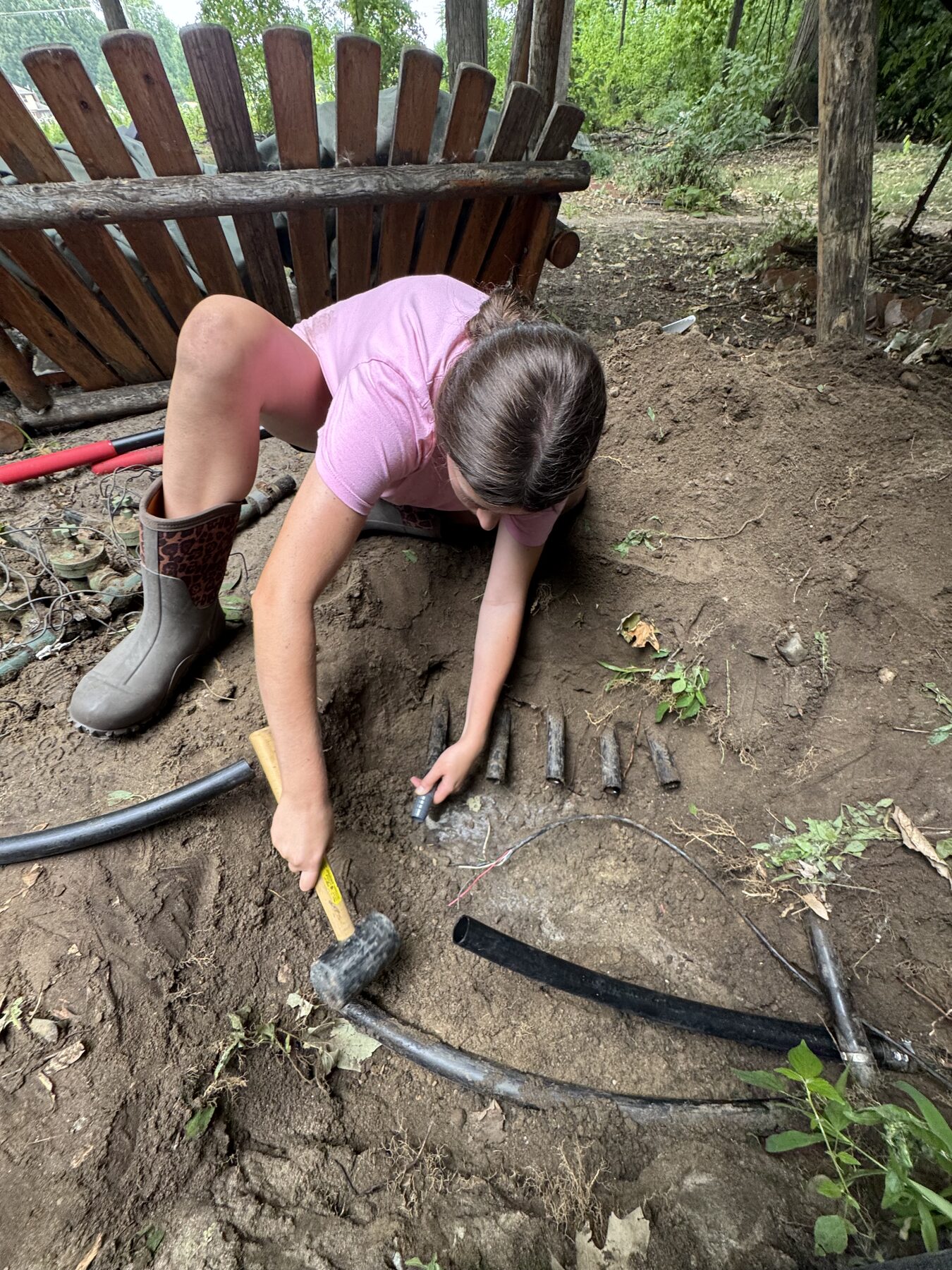

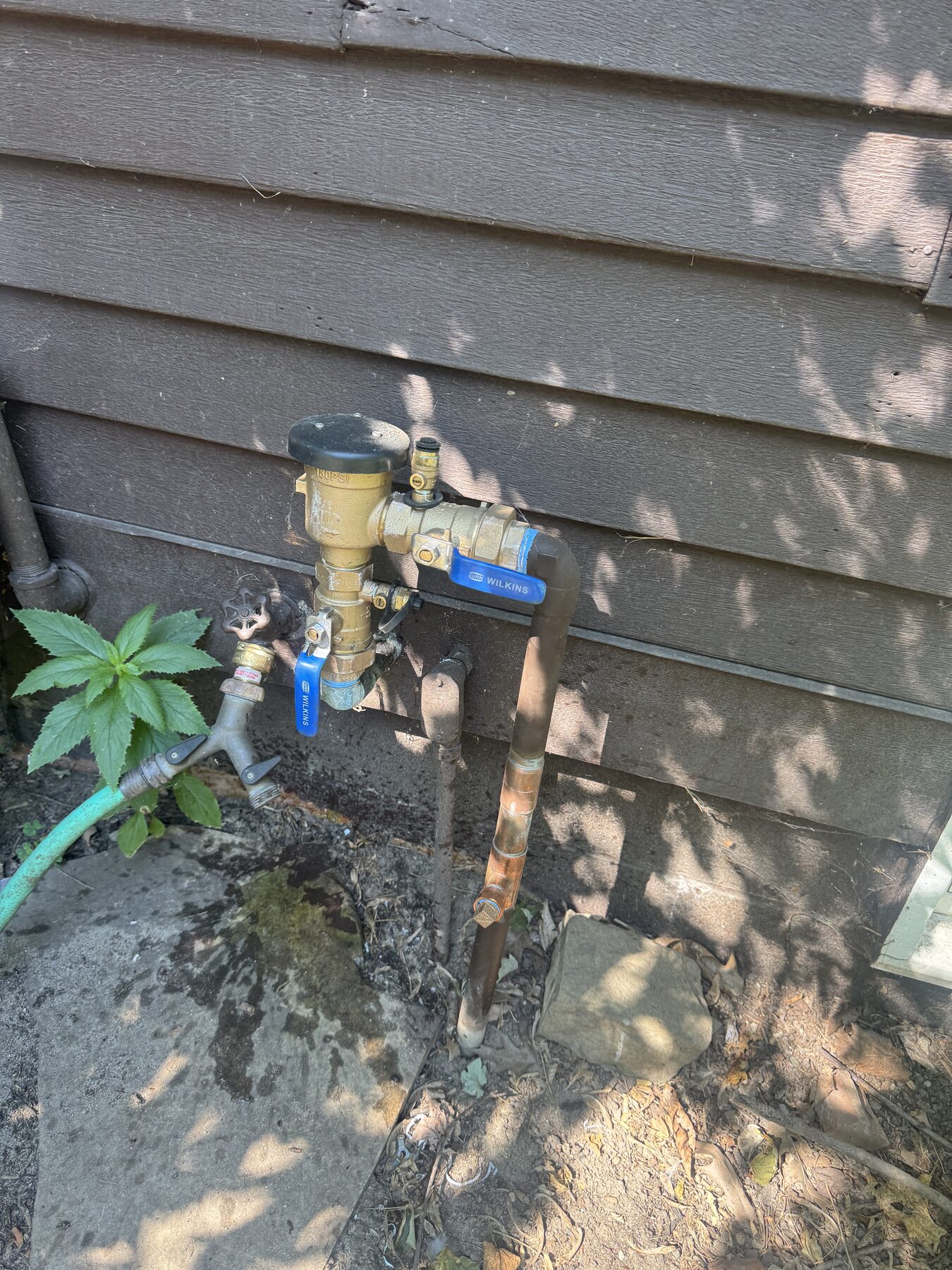

Before, diagnosis, repair and completed-work photos

These are photographs from the documented Hunter HydroTech Shelby Township irrigation revamp. Captions describe the recorded stage of work without inventing details that were not recorded in the project notes.
